HTJC-430 trituradora de mandíbula nueva

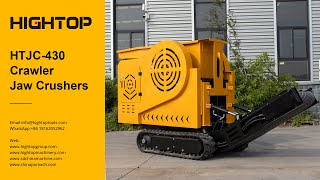

HTJC-430 Crawler Jaw Crusher: High-Performance Mobile Crushing Solution

The HTJC-430 Crawler Jaw Crusher is a versatile, robust mobile crushing equipment designed for efficient on-site material processing. Engineered with practicality and durability in mind, it excels in construction, mining, and recycling scenarios.


Core Features & Specifications
Compact & Maneuverable Design
With a working size of 3200 1000 1620mm and shipping size of 2100 1000 1750mm, plus hydraulically powered rubber tracks (180 72 41mm) and a 0-3km/h travel speed, it navigates tight spaces and uneven terrains with ease—while the tracks’ large grip ensures anti-slip, wear-resistant performance.

High-Capacity Crushing System
Equipped with a 0.25m³ large-capacity hopper (thickened sheet + process welding) and a deep-cavity crushing chamber , it handles a maximum feed size of 200mm (feed port: 220 350mm) and produces 2-5T/h of uniformly sized gravel (15-50mm range). The grease-lubricated jaw mechanism ensures long-term stable operation.

Flexible Material Handling
Its 1500 500mm feeding conveyor (400mm belt width) and multi-angle adjustable discharge conveyor support a stacking height range of 700-1150mm, adapting to diverse on-site loading/stacking needs.

User-Friendly Operation
The concise, clear control panel and manual hydraulic valve system simplify operation; track tension is adjusted mechanically for easy maintenance.

Reliable Power & Fluid Systems
Powered by a Rato R500-V2-18HP gasoline engine (13KW output power), it features a 6.5L fuel tank, 1.0L oil volume, and 35L hydraulic oil tank (compatible with 32 /46 oil)—supporting long hours of continuous work.

HTJC-430 Crawler Jaw Crushers
Working size(mm): 3200*1000*1620
Vertical plate inner width: 380mm
Shipping size :2100*1000*1750mm
Total outer width of cover:960mm
Track type :180*72*41mm
Bunker volume:0.25m³
Weight wheel diameter:126mm
Stacking height:700-1150mm
Number of wheels:6groups
Feeding conveyor:1500*500mm
Feed port size:220*350mm
Gravel range:15-50mm
Maximum feed size:200mm
Travel speed:0-3km/h
Track specifications:Rubber track
Conveyor belt width :400mm
Production capacity:2T-5T/h
Dynamic system
Gasoline engine standard:Rato R500-V2-18HP
Fuel tank capacity:6.5L
Output power:13KWV/3600r/min
Oil volume:1.0L
Tank capacity:6.5L
Hydraulic tank volume:35L,32#/46
Operating driving and main accessories parameters
Equipment operation mode:Manual hydraulic valve
Walking mode:Hydraulically powered track type
Travelling motor type:6K-395
Continuous torque:850
Hydraulic pump specifications:PGP5108
Conveyor motor model:BMER-300
Conveyer lifting mode:Manual operation of hydraulic lift
Lubrication method of jaw breaking mechanism:grease
Track tightening adjustment method:mechanical
